LoRaWAN Gateways

MAT32NEU868

LoRaWAN gateway / outdoor · ATEX & IECEx Zone 2 + 22
EU868 TDD · 32 + 4 Rx / 4 Tx · double simultaneous Tx
Dual antenna Rx diversity · bandpass filter · 75 dB isolation
M12 Ethernet · PoE 802.3bt or 48 VDC · −40 to +60 °C

5,298.00 €

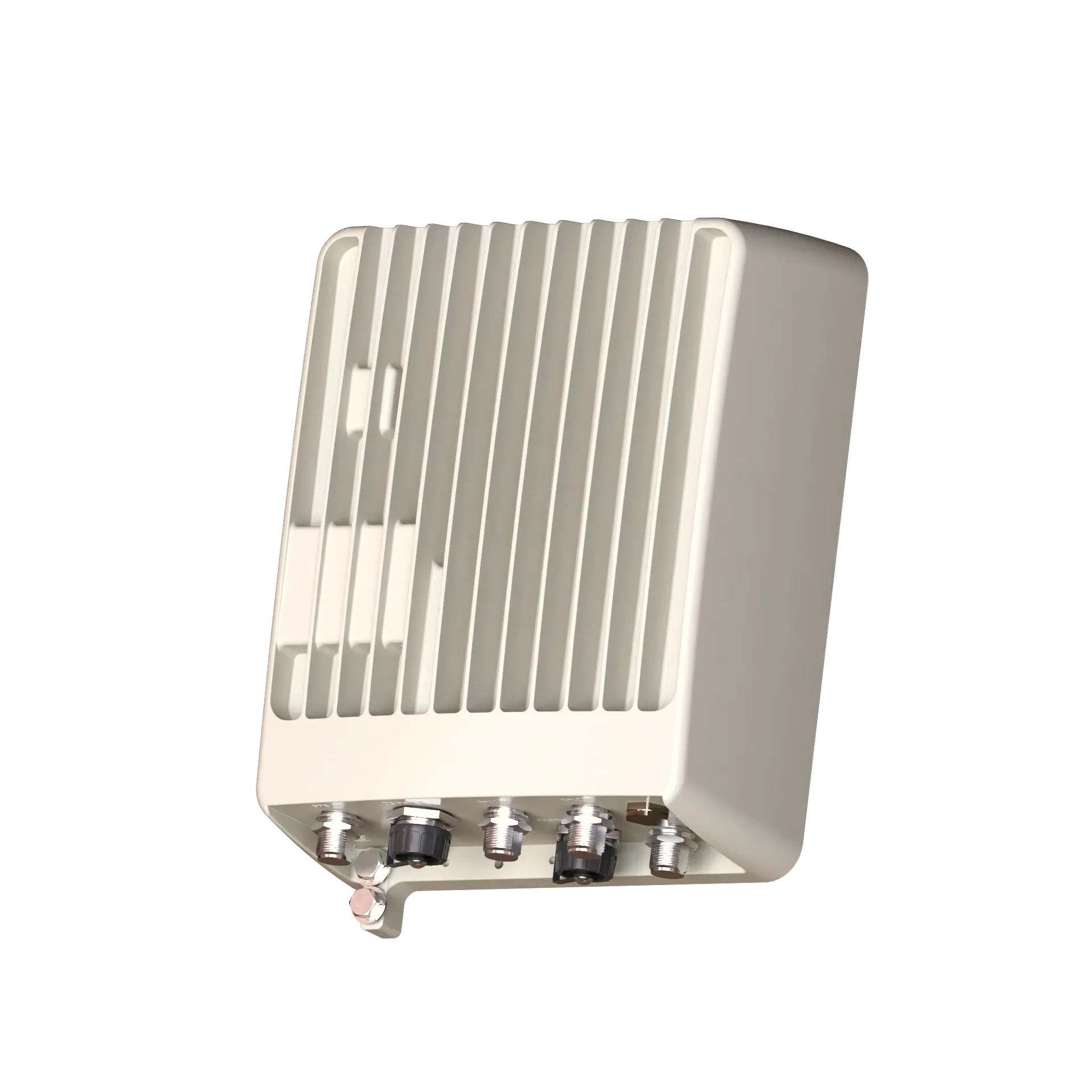

MACO2LEU868

LoRaWAN gateway / outdoor · IP67 · carrier-grade aluminium
EU868 TDD · 32 + 4 Rx / 4 Tx · double simultaneous Tx
Dual antenna Rx diversity · 75 dB isolation · cavity filter
Built-in 4G LTE · PoE 802.3bt or 48 VDC · −40 to +60 °C

2,997.00 €

MACO2NEU868

LoRaWAN gateway / outdoor · IP67 · carrier-grade aluminium
EU868 TDD · 32 + 4 Rx / 4 Tx · double simultaneous Tx
Dual antenna Rx diversity · 75 dB Tx-Rx isolation · cavity filter
PoE 802.3bt or 48 VDC · −40 to +60 °C · lightning protection

2,958.00 €

MICO1CEU868

LoRaWAN gateway / outdoor · IP67 (UL Type 6) · hardened
EU868 TDD · external N-Type LoRa antenna · internal GPS
Integrated 3G/4G LTE modem · PoE 802.3at Class 4 or 48 VDC
−40 to +60 °C · lightning protection · pole/wall mount

1,733.00 €

MICO1GEU868

LoRaWAN gateway / outdoor · IP67 (UL Type 6) · hardened
EU868 TDD · external N-Type LoRa antenna · internal GPS
PoE 802.3at Class 4 or 48 VDC · 20 W · −40 to +60 °C
Lightning protection on all interfaces · pole/wall mount

1,644.00 €

PHW050EU868

Solar LoRaWAN gateway / outdoor · IP67 · off-grid ready
50 W panel · 220 Wh LiFePO4 battery · −30 to +45 °C
EU868 TDD · 8 Rx / 1 Tx · 27 dBm Tx · class A/B/C
4G LTE backhaul · multi-GNSS · 10 kA lightning protection

2,567.00 €

PHW095EU868

Solar LoRaWAN gateway / outdoor · IP67 · off-grid ready
95 W panel · 220 Wh LiFePO4 battery · −30 to +45 °C
EU868 TDD · 8 Rx / 1 Tx · 27 dBm Tx · class A/B/C
4G LTE backhaul · multi-GNSS · 10 kA lightning protection

2,632.00 €

MITX3LEU868

LoRaWAN gateway / outdoor · ATEX Zone 1 · Class I Div 1
EU868 TDD · 16 Rx / 2 Tx · 27 dBm Tx · −142 dBm sensitivity
Dual antenna · adaptive cavity filter · 75 dB isolation
Built-in 4G LTE · PoE 802.3at or 48 VDC · IP66 · 4X

12,039.66 €

MITX6LEU868

LoRaWAN gateway / outdoor · ATEX Zone 1 · Class I Div 1
EU868 TDD · 16 Rx / 2 Tx · 27 dBm Tx · −142 dBm sensitivity
Dual antenna · adaptive cavity filter · 75 dB isolation
Built-in 4G LTE · PoE 802.3at or 48 VDC · IP66 · 4X

12,115.34 €

MOEN2TLEU868

LoRaWAN gateway / outdoor · IP67 · carrier-grade design
8 Rx / 1 Tx · EU868 · 27 dBm Tx · −141 dBm Rx sensitivity
RJ-45 PoE 802.3af · dual-SIM 4G LTE · GPS · internal antennas
−40 to +60 °C · lightning protection · pole/wall/tower mount

858.00 €

MOEN2TNEU868

LoRaWAN gateway / outdoor · IP67 · carrier-grade design
8 Rx / 1 Tx · EU868 · 27 dBm Tx · −141 dBm Rx sensitivity
RJ-45 PoE 802.3af · internal LoRa & GPS antennas
−40 to +60 °C · lightning protection · pole/wall/tower mount

731.00 €

MIG2TLEU868

LoRaWAN gateway / indoor · IP30 · 4 hour battery backup
8 Rx / 1 Tx · EU868 · 27 dBm Tx · Listen Before Talk
RJ-45 Ethernet · 12V DC or PoE · dual-SIM 4G LTE failover

463.00 €

MIG2TEEU868

LoRaWAN gateway / indoor · IP30 · 4 hour battery backup
8 Rx / 1 Tx · EU868 · 27 dBm Tx · Listen Before Talk
RJ-45 Ethernet · 12V DC or PoE 802.3bt · external antenna

373.00 €
